Model 19 Slidepole
 Model 19

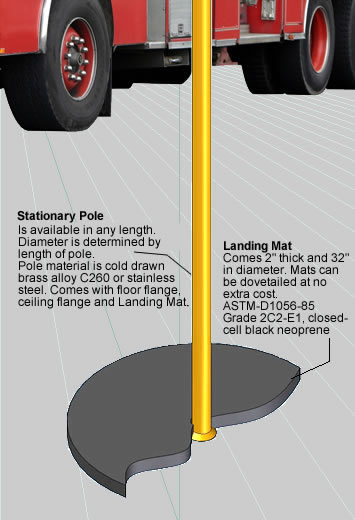

 Stationary Pole


Why use Model 19?

  • For two or more storied stations.
  • For closet applications
  • When atmosphere is the same on both floors
  • To reduce response time
  • For home use

Safety Kits and Floor Trim Kits can be added to the Model 19.

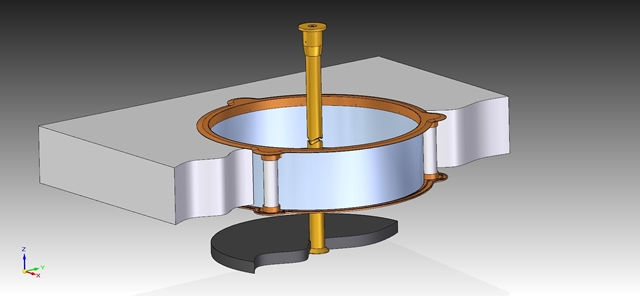

Floor Trim Kits Include:

  • Polished cast bronze trim ring for the floor.
  • Stainless steel filler sheet with nipples where you pass through the floor.
  • Polished cast bronze trim ring for the ceiling.

Model 19 Floor Trim Kit

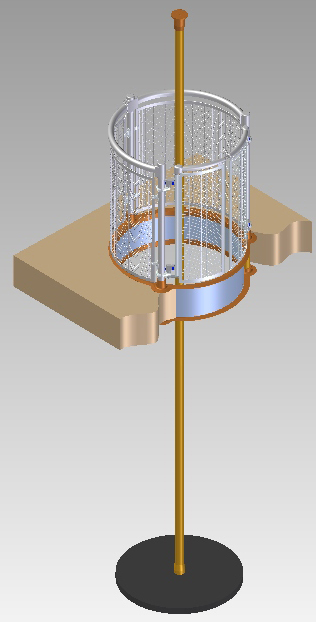

Safety Kits include:

  • Polished cast bronze trim ring for the floor and stainless steel filler sheet where you pass through the floor.
  • A polished cast bronze trim ring for the ceiling.
  • Chrome stanchions
  • 14 ga. stainless steel mesh guards
  • Chromed cast bronze self-closing gate.
  • Chromed cast bronze handrail and lock-out.

Click image for larger view

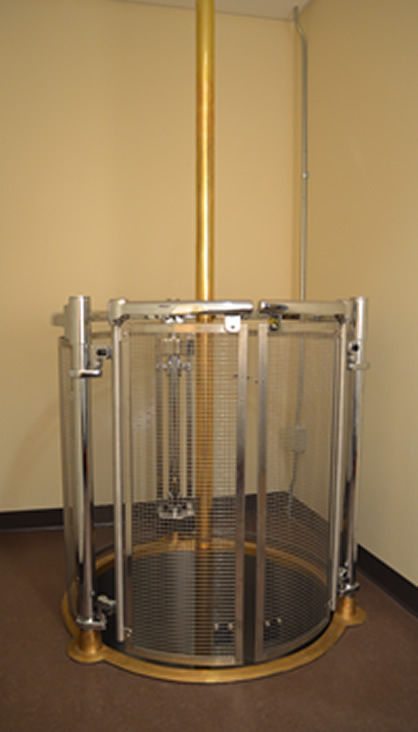

Model 19 Safety Kit


Photo by Nathaniel Cassidy


MADE IN THE USA
