 Model 23
Click on small photos for larger view

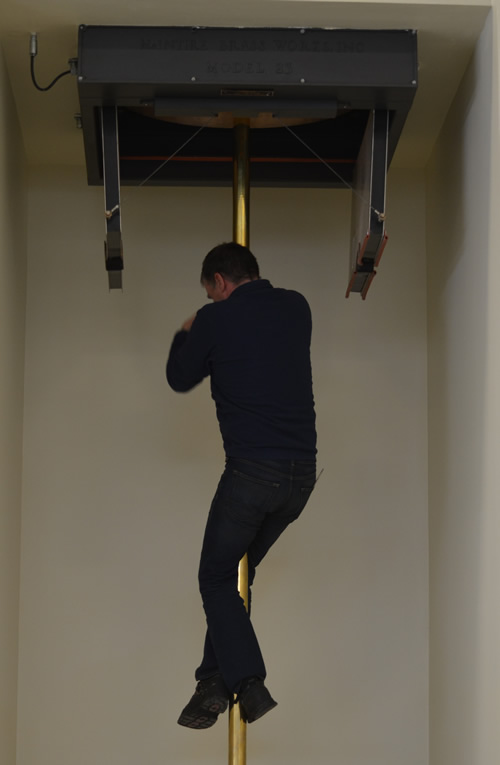

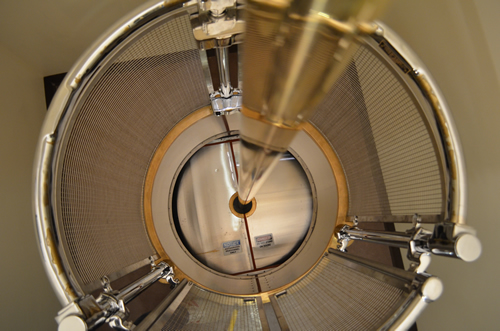

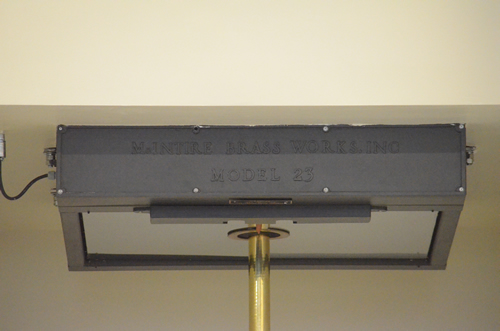

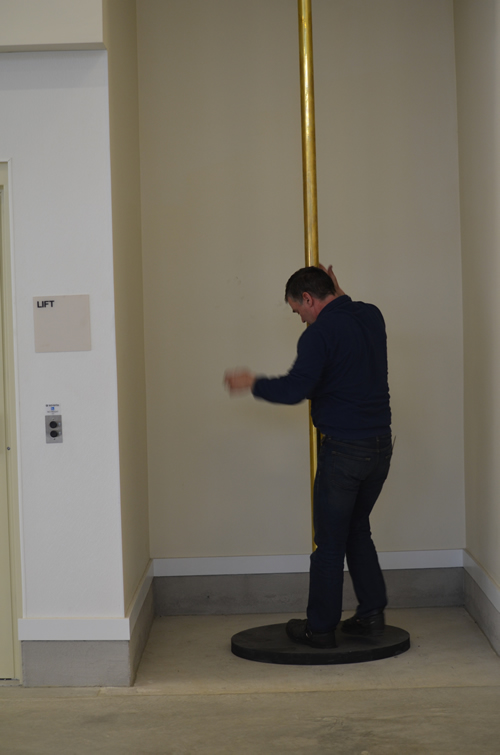

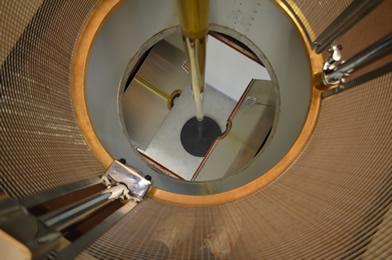

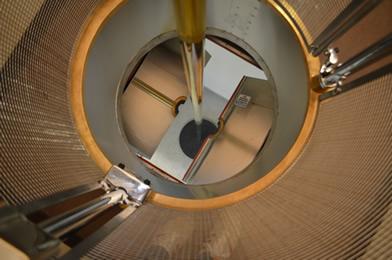

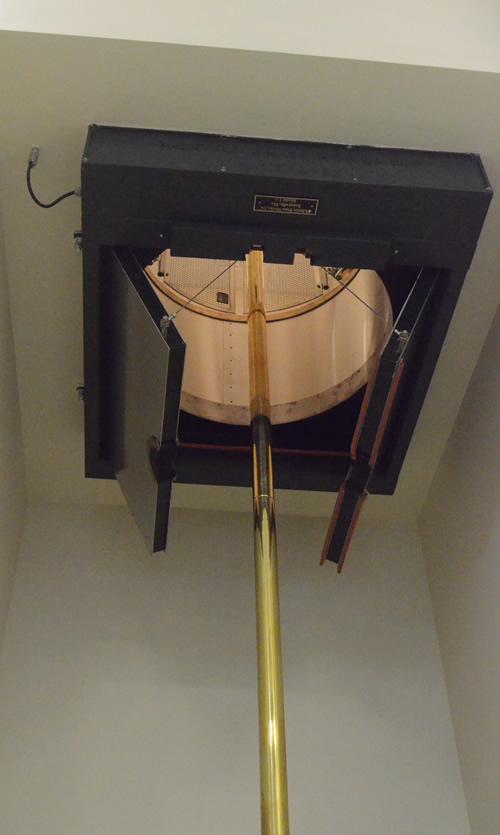

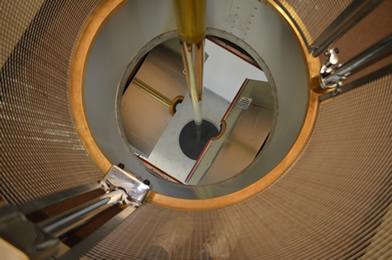

Model 23
Model 23
Model 23
Model 23
Model 23
Model 23
Model 23
Model 23

Why use Model 23?

  • For fire separation between floors
  • To reduce response times
  • To eliminate drafts
  • To reduce heating and cooling losses
  • To inhibit fumes
  • To deter Insect infiltration
  • To eliminate the need for a closet
  • It gives an unobstructed view
  • To protect your pole hole
  • To have a keyed lock-out safety
  • To upgrade from existing Model 20 slidepoles.

Key Features

Electrical components include:

  • A programmable logic controller
  • Two infrared sensors
  • High temp cut-out switch
  • Gap sealing with intumescent materials to insure sealing in case of fire
  • Stainless steel guards
  • Chrome plated bronze for many trouble-free years of service

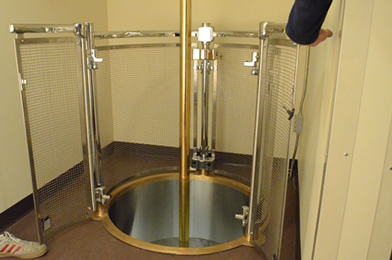

  • Self-closing gate
  • Heat sensor to shut unit down in case of fire

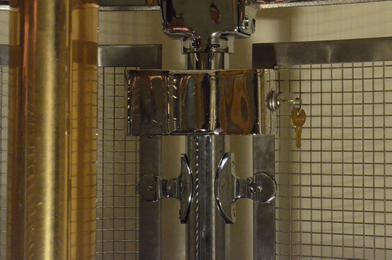

  • Electrical key lock-out
  • Manual lock-out
  • Model 20's can be retrofitted to Model 23 standards

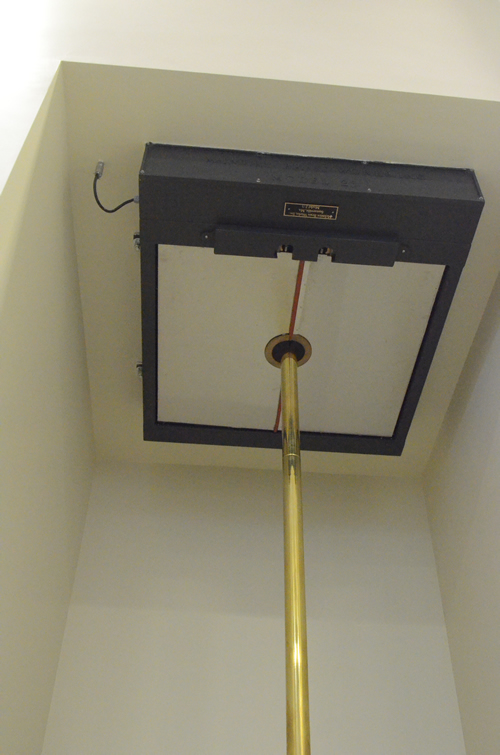

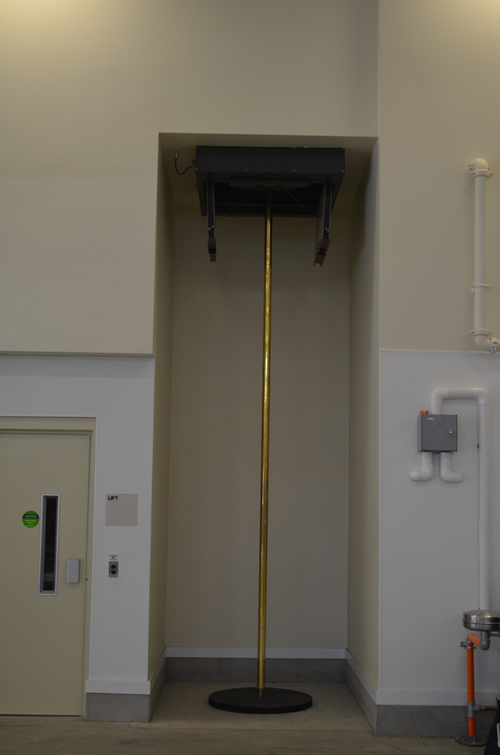

  • Fire doors drop and become perpendicular to the ceiling

Replacement Parts are available



CAD

PDF
MADE IN THE USA
